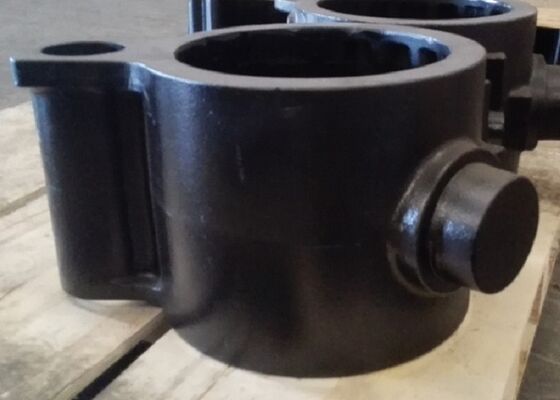

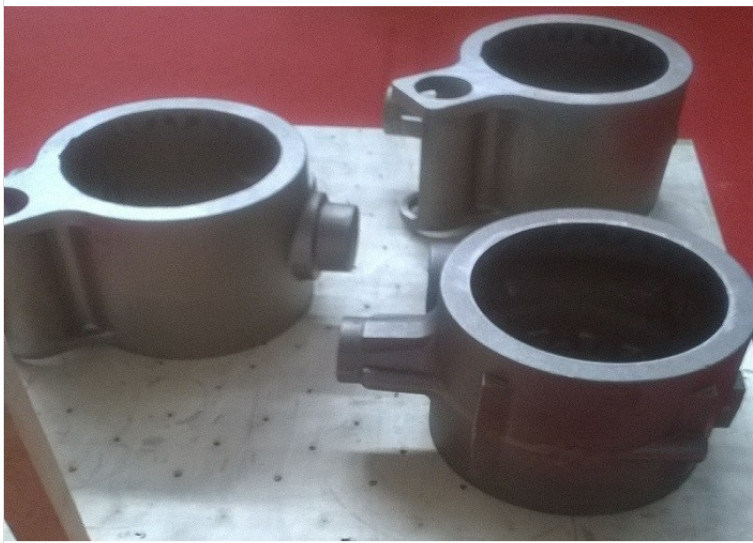

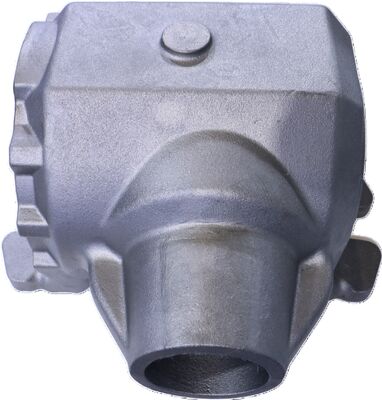

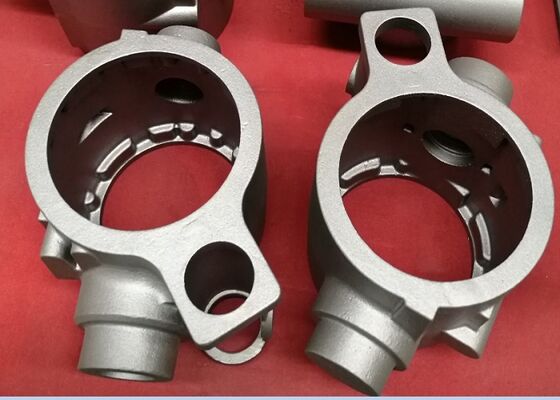

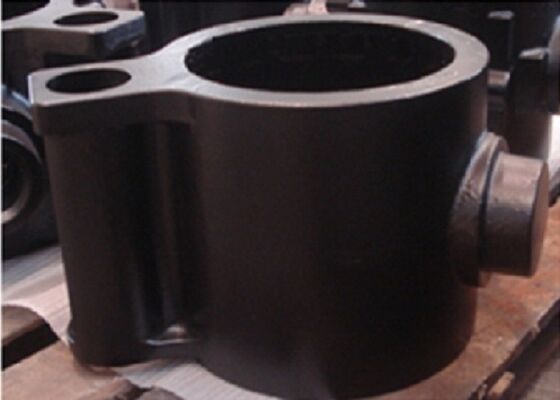

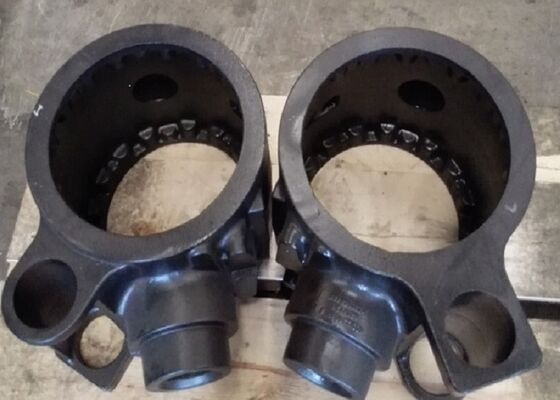

OEM High-Quality Sand Cast Iron Accurate Dimension Drive Head Casting Parts With Finish Painting

OEM High-Quality Sand Cast Iron Accurate Dimension Drive Head Casting Parts With Finish Painting

Products Information

Manufacturing Process

KW Line

The factory introduced the Static Pressure fully automatic molding line from KW Company in Germany, with a production efficiency of up to 105 molds per hour.KW line is suitable for manufacturing large batches of industrial castings.

The size of flask is (mm): 1320 *800 *350/300

Resin sand casting line

The Resin Sand Molding Line and sand processing line was introduced from Italy's IMF Company, using standard sand box rapid molding rings, with an efficiency of up to 12 molds per hour. At the same time, the on-site configuration of the styling is suitable for independent production areas with small batches and multiple varieties, and is suitable for various batch product needs.

The size of Standard flask is (mm): 1250* 840* 350/300; Maximum non-standard flask size is (mm): 4000 x 3000x 600/400

Vertical molding line

The Vertical Production Line adopts the Danish DISA vertical box less molding line, with a production efficiency of over 400 molds per hour. Suitable for the production of small size and large quantities of various gray iron and ductile iron castings.

The flask size is (mm): 535 * 650

V-Process Line

There are four Vacuum Casting Lines with large, medium, and small types in Hefei plant, and also four Vacuum Casting Lines with extra-large, large, medium, and small types in LU AN plant. Equipped with primer and topcoat spraying lines, suitable for the production of various construction machinery, industrial vehicles, and special vehicle counterweights, as well as other structurally simple gray iron and ductile iron parts.

The maximum size of the flask is (mm): 4000 x 3000 x 700/950, capable of producing over 20 tons counterweight products.

Lost foam casting line

The key equipment of the Lost Foam casting line is imported from the United States and Germany. It is suitable for producing small and medium-sized castings such as high-strength gray cast iron and ductile iron with high appearance and complex internal cavities,especially for special structure castings such as blind holes and inclined holes.

Flask size (mm): 830*1000

Machining

(加工图片)

Capacity- Machining

We have more than 60 machining equipment , which has the ability of lathing, milling,

planning, grinding, drilling, welding, cleaning, and wire cutting.

We have several high-end CNC equipment, including Mazak lathing & milling complex center,

horizontal machining center,which can supply a lot of machined castings with high accuracy.

Processing Equipment

There are about 50 kinds of machinery processing equipment in our department

CNC lathe * 12

CNC Vertical Lathe * 3

CNC Wire-Cut Machine * 1

Vertical machining center * 2

Horizontal Machining Center * 2

CMM (ZEISS) : 1800*1200 *1000

Quality Assurance

Quality Equipment/Develop Software
Chemical composition analyzer-spectrometer

Metallographic analyzer, photograph * 1000(Max)

Mechanical property analyzer Impact resistance tester

Hardness tester

Ultra sonic tester, Penetration inspection tester

CMM(ZEISS),

3D Laser Scanner

Develop Software:MAGMA

Company Profile

Anhui Heli Co., Ltd. Hefei Casting and Forging Factory was founded in 1958 and is located in the Economic Development Zone of Hefei City. It is the core enterprise of Anhui Heli (listed company 600761 on the Shanghai Stock Exchange), the vice chairman unit of the China Foundry Association, the president unit of the Anhui Foundry Association, and a model enterprise of green casting in China. We are one of the most comprehensive casting enterprises in China, with casting processes including V-process (vacuum molding), lost foam casting, high-pressure molding, resin sand casting, vertical molding, and 3D printing.
HELI CASTING is mainly engaged in the research and development, production, and provision of solutions related to casting structures and materials in the fields of industrial vehicles, engineering machinery, automobiles, agricultural machinery, rail transit, and new energy. It has various intelligent casting inspection equipment and advanced simulation software, and has strong manufacturing capabilities covering pattern design and manufacturing, casting production, machining, painting, packaging, and delivery. It has an annual production capacity of 480,000 tons of cast iron parts and 30,000 tons of machined castings. Our products are exported to developed countries and regions such as the United States, Europe, Japan, and South Korea, with over 95% of customers choosing our factory as their sole supplier.
